Panasonic Lumix DMC-GH5 II Body Overview
Introduction
The Panasonic Lumix DMC-GH5 II is a mirrorless camera crafted for professional filmmakers, content creators, and photographers who demand high-quality performance. Building upon the legacy of the original GH5, this updated model enhances imaging, video capabilities, and connectivity for modern creative workflows.
Design & Build

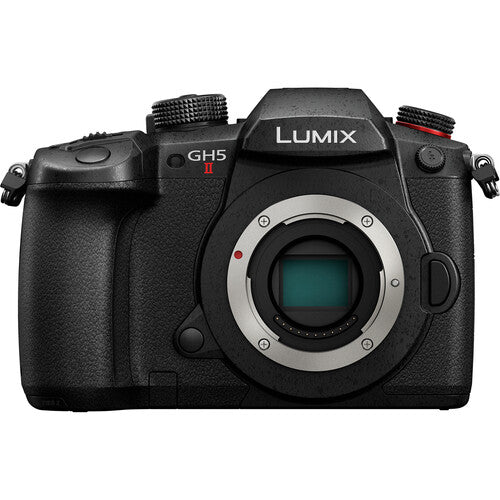

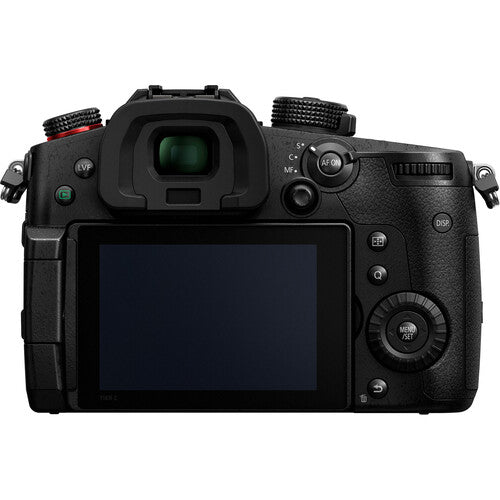

Durability and usability are key strengths of the GH5 II. Its magnesium alloy body is dust, splash, and freeze-resistant, ensuring reliability in challenging environments. The ergonomic grip and well-placed controls make long shoots more comfortable, while the 3.0-inch free-angle LCD touchscreen with 1.84M-dot resolution offers flexible viewing angles and clear visibility.
Imaging Performance
Equipped with a 20.3MP Live MOS sensor featuring an anti-reflective coating, the GH5 II delivers detailed, high-resolution images with minimal glare and ghosting. Its Venus Engine processor enhances color accuracy, reduces noise, and supports faster performance. Dual I.S. 2 stabilization combines in-body and lens-based stabilization to deliver steady shots, even during handheld or low-light shooting.
Video Features
A standout aspect of the GH5 II is its advanced video functionality. It supports 4K and C4K video recording at up to 60p with 10-bit internal recording. V-Log L comes pre-installed, offering a wider dynamic range and flexibility for color grading. Unlimited recording times and support for both wireless and wired live streaming make it a versatile tool for professional video production and live content creation.
Connectivity & Workflow
The GH5 II integrates Wi-Fi and Bluetooth for quick and easy wireless control. Using the Lumix Sync app, users can remotely operate the camera, transfer files, and streamline workflows. Dual SD card slots provide extended recording capacity and secure backup options, ensuring creators never miss a moment.
Conclusion
The Panasonic Lumix DMC-GH5 II Body is a robust and versatile mirrorless camera that excels in both photography and videography. With professional-grade 4K recording, powerful stabilization, durable build, and modern streaming features, it stands out as an ideal choice for hybrid creators seeking reliability and high performance in a single compact system.
Panasonic Lumix DMC GH5 Mark II Body Specs
Imaging
| Lens Mount |
Micro Four Thirds |
| Sensor Resolution |
Actual: 21.77 Megapixel
Effective: 20.33 Megapixel |
| Sensor Type |
17.3 x 13 mm (Four Thirds) MOS |
| Crop Factor |
2x |
| Image Stabilization |
Sensor-Shift, 5-Axis |
| Built-In ND Filter |
None |
| Capture Type |
Stills & Video |
Exposure Control
| Shutter Type |
Electronic Shutter, Mechanical Focal Plane Shutter |
| Shutter Speed |
Electronic Shutter
1/16000 to 60 Seconds
Up to 60 Seconds in Bulb Mode
Electronic Front Curtain Shutter
1/2000 to 60 Seconds
Up to 30 Minutes in Bulb Mode |
| Bulb/Time Mode |
Bulb Mode |
| ISO Sensitivity |
200 to 25,600 in Auto Mode (Extended: 100 to 25,600)
Video
200 to 12,800 in Auto Mode (Extended: 100 to 12,800) |
| Metering Method |
Center-Weighted Average, Highlight Weighted, Multiple, Spot |
| Exposure Modes |
Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Exposure Compensation |
-5 to +5 EV (1/3 EV Steps) |
| Metering Range |
0 to 18 EV |
| White Balance |
Presets: Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Continuous Shooting |
Up to 12 fps at 20.3 MP
Up to 30 fps at 18 MP
Up to 60 fps at 8 MP |
| Interval Recording |
Yes |
| Self-Timer |
2/10-Second Delay |
Still Image Capture
| Image Sizes |
4:3 Raw
5184 x 3888
4:3 JPEG
5184 x 3888
3712 x 2784
2624 x 1968
3:2 JPEG
5184 x 3456
3712 x 2480
2624 x 1752
16:9 JPEG
5184 x 2920
3840 x 2160
1920 x 1080
1:1 JPEG
3888 x 3888
2784 x 2784
1968 x 1968 |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
| Image File Format |
JPEG, Raw |
| Bit Depth |
14-Bit |
Video Capture
| Internal Recording Modes |
H.265/MOV 4:2:0 10-Bit
4992 x 3774 at 23.98/24.00/25/29.97 fps [200 Mb/s]
3328 x 2496 at 50 fps [200 Mb/s]
DCI 4K (4096 x 2160) at 50 fps [200 Mb/s]
UHD 4K (3840 x 2160) at 50/59.94 fps [200 Mb/s]
H.264/MOV 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [150 to 400 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
3328 x 2496 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps [100 to 200 Mb/s]
H.264/MOV 4:2:0 8-Bit
3328 x 2496 at 23.98/24.00/29.97/50/59.94 fps [100 to 150 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97 fps [100 to 150 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 150 Mb/s]
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps [100 Mb/s]
H.265/MP4 4:2:0 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [72 to 100 Mb/s]
H.264/MP4 4:2:0 8-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97 fps [100 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [20 to 28 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 25/59.94 fps
4:2:2 8-Bit via HDMI
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 23.98/24.00/25/29.97/50/59.94 fps |
| Fast-/Slow-Motion Support |
Yes |
| Recording Limit |
None |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
RTMP
1280 x 720 to 1920 x 1080 at 25p, 29.97p, 50p, 59.94p (3.0 to 16.00 Mb/s)
RTMPS
1280 x 720 to 1920 x 1080 at 25p, 29.97p, 50p, 59.94p (3.0 to 8.0 Mb/s) |
| Built-In Microphone Type |
Stereo |
| Audio Recording |
AAC Audio
LPCM Audio |
Interface
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O |
1 x HDMI Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O |
1 x USB-C Input/Output |
| Other I/O |
1 x USB-C (USB 3.2 / 3.1 Gen 1) Data Input/Output (Shared with Power Input)
1 x 2.5 mm Sub-Mini Control Input |
| Wireless |
Wi-Fi, Bluetooth |
| App Compatible |
Yes
|
| Global Positioning (GPS, GLONASS, etc.) |
None |
Monitor
| Size |
3" |
| Resolution |
1,840,000 Dot |
| Display Type |
Free-Angle Tilting Touchscreen LCD |
Viewfinder
| Type |
Built-In Electronic (OLED) |
| Resolution |
3,680,000 Dot |
| Eye Point |
21 mm |
| Coverage |
100% |
| Magnification |
Approx. 76x |
| Diopter Adjustment |
-4 to +3 |
Focus
| Focus Type |
Auto and Manual Focus |
| Focus Mode |
Automatic, Continuous-Servo AF, Flexible, Manual Focus, Single-Servo AF |
| Autofocus Points |
Contrast Detection: 225 |
| Autofocus Sensitivity |
-4 to +18 EV |
Flash
| Built-In Flash |
No |
| Flash Modes |
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction |
| Maximum Sync Speed |
1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3 EV Steps) |
| Dedicated Flash System |
TTL |
| External Flash Connection |
Hot Shoe, PC Terminal |
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Operating Humidity |
10 to 80% |
General
| Battery Type |
1 x DMW-BLK22 Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 400 Shots) |
| Tripod Mounting Thread |
1 x 1/4"-20 Female (Bottom) |
| Accessory Mount |
1 x Hot Shoe Mount |
| Material of Construction |
Magnesium Alloy |
| Dimensions (W x H x D) |
5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm |
| Weight |
1.6 lb / 727 g |
