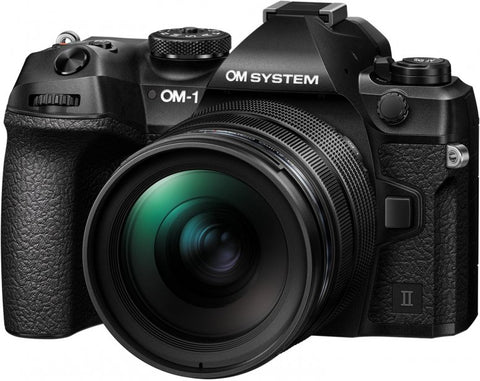

OM System OM-1 Mark II Mirrorless Camera with 12-40mm F/2.8 Pro II Lens – Overview
Professional Build & Design
The OM System OM-1 Mark II maintains a rugged, weather-sealed magnesium alloy body, designed to withstand dust, splashes, and freezing conditions. Its compact yet durable design makes it an excellent choice for photographers who often shoot outdoors and in unpredictable environments.
Advanced Sensor & Processing Power
At its core, the OM-1 Mark II features a 20.4MP Stacked BSI Live MOS sensor paired with the TruePic X processor. This powerful combination ensures excellent image quality, faster readout speeds, and superior low-light performance with minimal noise across a wide ISO range.
Autofocus & Speed
The camera is equipped with an advanced AI-powered autofocus system that recognizes and tracks subjects such as humans, birds, animals, and vehicles. Continuous shooting speeds up to 120 fps (with AF/AE lock) and 50 fps (with AF/AE tracking) make it an outstanding tool for sports, wildlife, and action photography.
Video Capabilities
For content creators, the OM-1 Mark II records up to 4K DCI/UHD at 60p and Full HD at 240p for smooth slow motion. High dynamic range options and 10-bit recording expand creative possibilities, while OM-Log400 ensures greater flexibility in post-production.
High-Resolution & Computational Features
The camera supports handheld and tripod High-Res Shot modes, generating images up to 80MP. Additional computational features like Live ND, Focus Stacking, and Pro Capture give photographers more tools to achieve creative results directly in-camera.

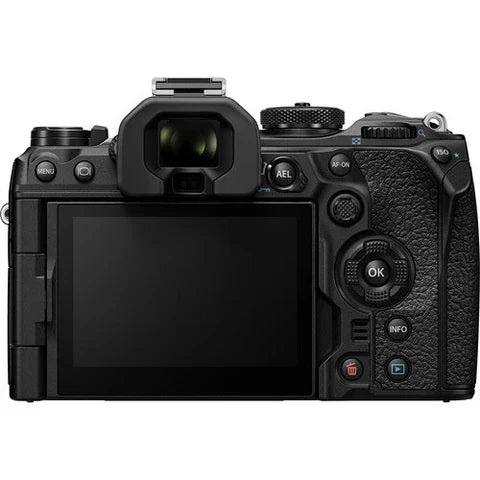

Vari-Angle LCD & EVF
A 5.76M-dot OLED electronic viewfinder provides a crisp, high-magnification view, while the fully articulating 3-inch LCD touchscreen enhances framing flexibility for photography and video recording.

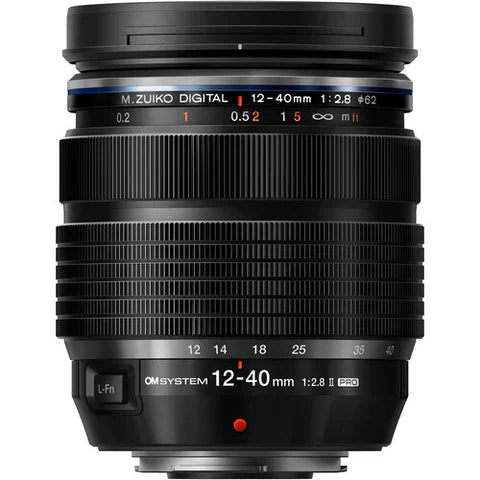

12-40mm F/2.8 Pro II Lens
Bundled with the M.Zuiko Digital ED 12-40mm F/2.8 Pro II lens, this kit covers a versatile focal range (24-80mm equivalent in 35mm terms). Its constant f/2.8 aperture ensures bright performance in low light and consistent depth of field across the zoom range. Advanced optics and coatings reduce aberrations, while its weather-sealed build matches the camera’s ruggedness.
Conclusion
The OM System OM-1 Mark II paired with the 12-40mm F/2.8 Pro II lens delivers a powerful, portable, and versatile solution for professionals and enthusiasts alike. With its cutting-edge autofocus, computational features, high-speed shooting, and durable design, this kit is ideal for photographers and videographers who demand reliability and creative flexibility in any environment.
OM System OM-1 Mark II Body Specs
| Lens Mount |
Micro Four Thirds
|
| Sensor Resolution |
Actual: 22.9 Megapixel
Effective: 20.4 Megapixel
|
| Image Sensor |
17.4 x 13 mm (Four Thirds) BSI MOS
|
| Sensor Crop (35mm Equivalent) |
Crop Factor: 2x
|
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Built-In ND Filter |
No
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
|
| Shutter Speed |
Mechanical Shutter
1/8000 to 60 Seconds
Electronic Shutter
1/32000 to 60 Seconds
Electronic Front Curtain Shutter
1/320 to 60 Seconds
|
| Bulb/Time Mode |
Bulb Mode, Time Mode
|
| ISO Sensitivity Range |
Photo/Video
200 to 25,600 in Manual, Auto Mode (Extended: 80 to 102,400)
|
| Metering Method |
Center-Weighted Average, Highlight, Multi-Zone, Spot
|
| Precise Scan Rate Control |
Yes
|
| Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority
|
| Exposure Compensation |
-5 to +5 EV (1/3, 1/2, 1 EV Steps)
|
| Metering Range |
-2 to 20 EV
|
| White Balance |
2000 to 14,000K
Presets: AWB, Custom, Flash, Fluorescent, Overcast, Shade, Sunlight, Tungsten, Underwater
|
| Continuous Shooting |
Up to 120 fps
|
| Interval Recording |
Yes
|
Still Image Capture
| Image Sizes |
4:3
50 MP (8160 x 6120) *Via In-Camera Pixel-Shift
25 MP (5760 x 4320) *Via In-Camera Pixel-Shift
20 MP (5184 x 3888)
|
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9
|
| Image File Format |
JPEG, Raw
|
| Bit Depth |
12-Bit
|
Video Capture
| Internal Recording Modes |
H.264/MPEG-4 AVC
4096 x 2160 at 23.98/25/29.97/50/59.94 fps [202 Mb/s]
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [202 Mb/s]
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps [202 Mb/s]
H.265
4096 x 2160 at 23.98/25/29.97/50/59.94 fps [152 Mb/s]
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [152 Mb/s]
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200 fps [162 Mb/s]
|
| External Recording Modes |
4:2:2/Raw 8/12-Bit via HDMI
4096 x 2160
3840 x 2160
1920 x 1080
|
| Fast-/Slow-Motion Support |
Slow-Motion Only
|
| Gamma Curve |
FLAT, HDR-HLG, OM-Log
|
| Recording Limit |
No
|
| IP Streaming |
No
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
16-Bit 48 kHz LPCM Audio
|
Interface
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II)
|
| Video I/O |
1x Micro-HDMI (Unspecified Signal) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
| Power I/O |
1x USB-C Input/Output
|
| Other I/O |
1x USB-C Data Input/Output (Shared with Power Input)
1x PC Sync Socket
|
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: OM Image Share
Functionality: Access Stored Files, Remote Control, View Live Feed
|
| Global Positioning (GPS, GLONASS, etc.) |
GPS
*Via Connected Smartphone
|
Monitor
| Display Size |
3"
|
| Resolution |
1,620,000 Dot
|
| Display Type |
Articulating Touchscreen LCD
|
Viewfinder
| Type |
Built-In Electronic (OLED)
|
| Resolution |
5,760,000 Dot
|
| Eye Point |
21 mm
|
| Coverage |
100%
|
| Magnification |
Approx. 1.48x
|
| Diopter Adjustment |
-4 to +2
|
Focus
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF
|
| Autofocus Points |
Photo, Video
Phase Detection: 1053
|
Flash
| Built-In Flash/Light |
No
|
| Flash Modes |
Fill In, Manual, Off, Red-Eye Reduction, Slow Sync
|
| Maximum Sync Speed |
1/250 Second
|
| Flash Compensation |
-3 to +3 EV (1/3, 1/2, 1 EV Steps)
|
| Dedicated Flash System |
TTL
|
| External Flash Connection |
Shoe Mount, PC Terminal
|
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
30 to 90%
|
| Storage Humidity |
10 to 90%
|
General
| Battery Type |
1x BLX-1 Rechargeable Lithium-Ion (Approx. 500 Shots)
|
| Shoe Mount |
1x Hot Shoe
|
| Tripod Mounting Thread |
1x 1/4"-20 Female (Bottom)
|
| Material of Construction |
Magnesium Alloy
|
| Dimensions (W x H x D) |
5.3 x 3.6 x 2.9" / 134.8 x 91.6 x 72.7 mm
|
| Weight |
1.1 lb / 511 g (Body Only)
|
OM SYSTEM M.Zuiko Digital ED 12-40mm F/2.8 PRO II Lens Specs
| Focal Length |
12 to 40mm (35mm Equivalent Focal Length: 24 to 80mm) |
| Maximum Aperture |
f/2.8 |
| Minimum Aperture |
f/22 |
| Lens Mount |
Micro Four Thirds |
| Lens Format Coverage |
Micro Four Thirds |
| Angle of View |
84° 30' |
| Minimum Focus Distance |
7.9" / 20 cm |
| Maximum Magnification |
0.3x |
| Optical Design |
14 Elements in 9 Groups |
| Diaphragm Blades |
7, Rounded |
| Focus Type |
Autofocus |
| Image Stabilization |
No |
| Filter Size |
62 mm (Front) |
| Dimensions (ø x L) |
2.8 x 3.3" / 70 x 84 mm |
| Weight |
13.5 oz / 382 g |
