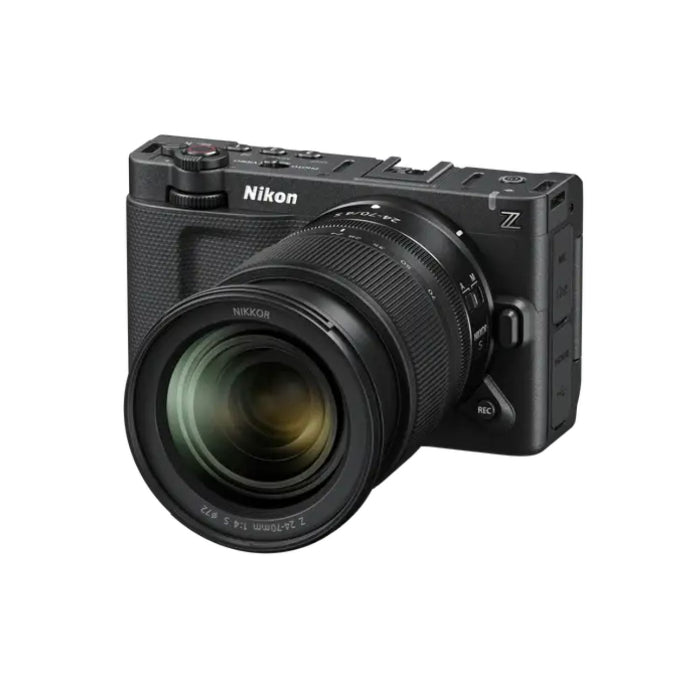

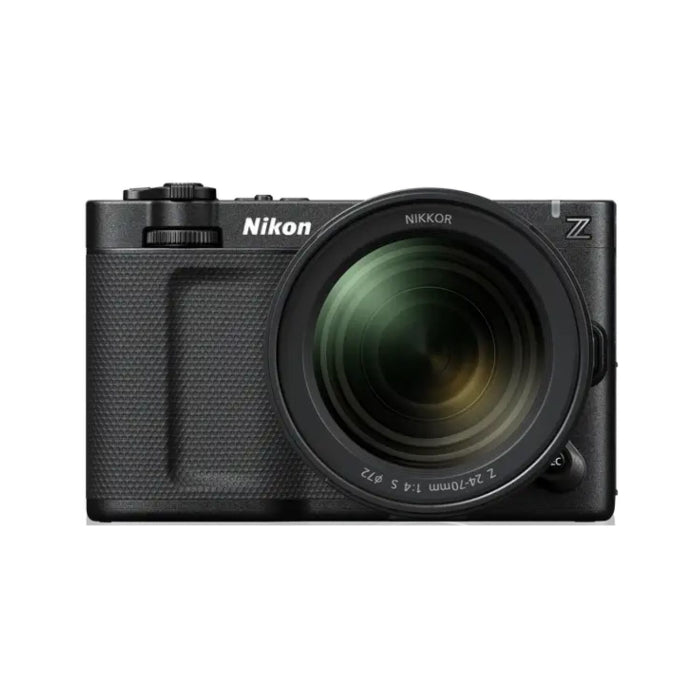

Nikon ZR Kit (24-70mm F4 S) Z CINEMA Series
Overview
The Nikon ZR Kit is an ultra-compact full-frame cinema camera developed through the synergy of Nikon's imaging expertise and RED Digital Cinema's legendary color science. This powerhouse combines the ability to internally record 6K/60p RAW video and class-leading 32-bit float audio. The included NIKKOR Z 24-70mm f/4 S lens provides versatile zoom capability for a wide range of cinematic shooting scenarios.
Key Features
Unmatched Video & RED Color Science
-
Internal 6K/60p RAW Recording – Supports R3D NE (REDCODE), N-RAW, and ProRes RAW HQ for ultimate post-production flexibility.
-
RED Color Science & R3D NE Codec – The first Nikon camera to integrate RED's R3D NE codec, delivering authentic RED color tonality, skin tones, and the signature RED look.
-
15+ Stops of Dynamic Range – Captures exceptional detail from highlights to shadows, ensuring balanced and cinematic imagery in any lighting condition.
-
Dual Native ISO 800/6400 – Switch between base ISOs for bright daylight or low-light interior scenes without compromising image quality.
-
Cinematic Video Mode & Imaging Recipes – Nine RED-curated looks available via Nikon Imaging Cloud for instant cinematic styling straight out of camera.
World's First 32-Bit Float Audio
-
32-bit Float Audio Recording – The world's first cinema camera to support 32-bit float audio with both built-in and external microphones, capturing distortion-free sound from whispers to loud concerts without gain adjustment.
-
Nokia OZO Audio Technology – Built-in three-microphone system with five selectable pickup patterns, including voice isolation and 360° modes.
Brilliant 4-Inch Monitor & Handling
-
4.0-inch DCI-P3 LCD – Large, bright (1000 cd/m²), and vari-angle touchscreen often eliminates the need for an external monitor [citation:1][citation:10].
-
Efficient Fanless Cooling – Innovative heat dissipation allows over 2 hours of silent continuous 6K recording without overheating.
-
LUT Monitoring & Cloud Workflow – Load up to 10 LUTs and preview grades in real-time; supports Frame.io Camera to Cloud for instant uploads via NX MobileAir.
High-Performance Autofocus & Stabilization
-
Deep-Learning AF – 273 AF points covering 90% of the frame with detection for people, animals, vehicles, and more.
-
7.5-Stop 5-Axis IBIS – In-body image stabilization delivers steady handheld footage even at telephoto focal lengths.
-
Advanced Photography Features – Inherits still photography capabilities from the Z6III, including starscape and portrait presets.
Kit Lens: NIKKOR Z 24-70mm f/4 S
-
Versatile 24-70mm Zoom Range – Covers wide-angle to short telephoto for landscapes, interviews, and cinematic close-ups.
-
Constant f/4 Aperture – Maintains consistent brightness and depth-of-field control throughout the zoom range.
-
Compact, Retractable Design – Folds down for easy portability, perfectly matching the compact ZR body.
-
Close Focusing – Minimum focus distance of 30cm with 0.3x magnification for detailed close-ups.
Conclusion
The Nikon ZR Kit with 24-70mm f/4 S lens is a groundbreaking tool that democratizes cinematic-quality filmmaking. The versatile kit lens ensures you're ready to shoot from day one, covering everything from wide establishing shots to intimate close-ups. Whether you're an emerging cinematographer, content creator, or high-end production professional, the Nikon ZR Kit offers an unparalleled blend of portability, image quality, and creative freedom at a remarkably accessible price point.
Nikon ZR Z Mount Specs
Imaging
| Lens Mount |
Nikon Z
|
| Lens Communication |
Yes: with Autofocus Support
|
| Image Sensor |
35.9 x 23.9 mm (Full-Frame) CMOS
|
| Effective Sensor Resolution |
24.5 Megapixel
|
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Built-In ND Filter |
No
|
| Built-In CC Filter |
No
|
| Internal Filter Holder |
No
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
Electronic Shutter
1/16000 to 900 Seconds
|
| Shutter Angle |
5.6 to 360°
|
| ISO/Gain Sensitivity |
Dual Base: 800 / 6400
Native: 100 to 64,000
|
| Signal-to-Noise Ratio |
Not Specified by Manufacturer
|
| Advertised Dynamic Range |
15 Stops
|
| White Balance |
Range: 2500 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
|
| Exposure Modes |
Auto, Manual
|
Focus
| Focus Mode |
Automatic, Continuous-Servo AF, Full-Time Servo, Manual Focus
|
Video Capture
| Internal Recording |
ProRes RAW 12-Bit
6048 x 3402 at 23.98/25/29.97 fps
4030 x 2268 at 23.98/25/29.97/50/59.94 fps
REDCODE RAW 12-Bit
6048 x 3402 at 23.98/25/29.97/50/59.94 fps (780 to 1710 Mb/s)
4030 x 2268 at 23.98/25/29.97/50/59.94 fps (700 to 1710 Mb/s)
3984 x 2240 at 23.98/25/29.97/50/59.94/100/120 fps
H.265 4:2:0 8/10-Bit
5376 x 3024 at 23.98/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
ProRes 422 HQ 4:2:2 10-Bit
5376 x 3024 at 23.98/25/29.97 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080 at 50/59.94/100/120 fps
H.264 4:2:0 8-Bit
1920 x 1080 at 23.98/25/29.97/50/59.94 fps
|
| Video Output |
3840 x 2160
|
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
Nikon N-Log, REDWideGamutRGB
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
ProRes, Raw: 2-Channel, 32-Bit
ProRes, Raw: 2-Channel, 24-Bit
|
| IP Streaming |
No
|
Interface
| Media/Memory Card Slot |
Slot 1: CFexpress Type B
Slot 2: microSD/microSDHC/microSDXC (UHS-I)
|
| Internal Storage |
No
|
| Video I/O |
1x Micro-HDMI Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
| Power I/O |
1x USB-C Input
|
| Other I/O |
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
|
| Wireless |
Wi-Fi / Bluetooth
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: SnapBridge
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |
Primary Monitor: Articulating 4" Touchscreen LCD
|
| Resolution |
Primary Monitor: 3,070,000 Dot
|
General
| Shoe Mount |
1x Intelligent Hot Shoe
|
| Tripod Mount |
1x 1/4"-20 Female (Bottom)
|
| Accessory Mounting Thread |
No
|
| Dimensions (W x H x D) |
5.2 x 3.2 x 1.9" / 133 x 80.5 x 48.7 mm
|
| Weight |
1.19 lb / 540 g (Body Only)
|
Nikon NIKKOR Z 24-70mm f/4 S Specs
| Focal Length |
24 to 70mm
|
| Aperture |
Maximum: f/4
Minimum: f/22
|
| Lens Mount |
Nikon Z
|
| Lens Format Coverage |
Full-Frame
|
| Angle of View |
84° to 34° 20'
|
| Minimum Focus Distance |
11.81" / 30 cm
|
| Magnification |
1:3.33 Macro Reproduction Ratio
0.3x Magnification
|
| Optical Design |
14 Elements in 11 Groups
|
| Aperture/Iris Blades |
7, Rounded
|
| Focus Type |
Autofocus
|
| Image Stabilization |
No
|
| Filter Size |
72 mm (Front)
|
| Dimensions |
ø: 3.05 x L: 3.48" / ø: 77.5 x L: 88.5 mm
|
| Weight |
1.1 lb / 500 g
|
