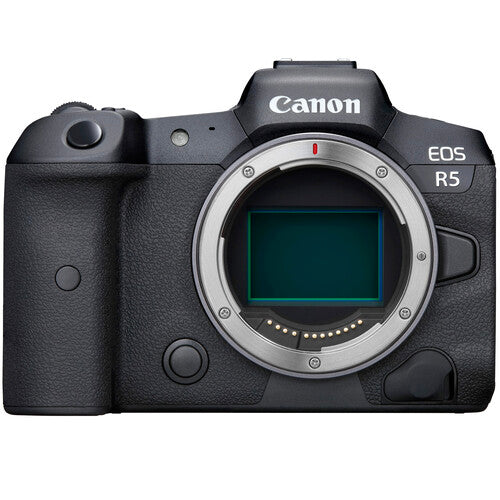

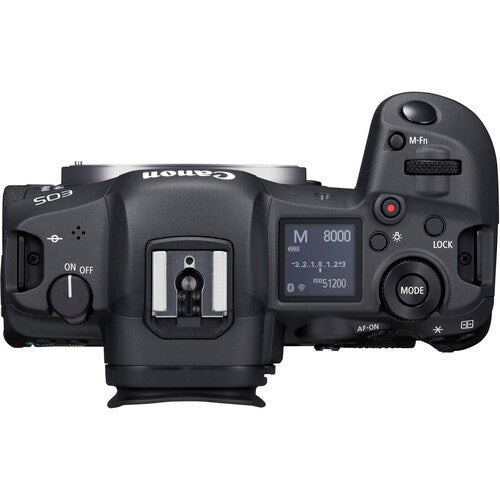

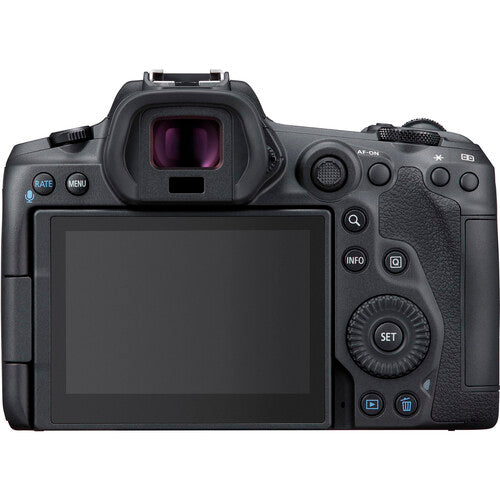

The Canon EOS R5 Body Only is a top-of-the-line mirrorless camera designed for professional photographers and videographers. With impressive features and cutting-edge technology, this camera delivers exceptional image quality and performance.
Key Features:
-
45MP Full-Frame CMOS Sensor: It boasts a high-resolution 45MP full-frame CMOS sensor that captures stunningly detailed images with rich colors.
-
8K Video Recording: The camera is capable of recording 8K videos at up to 30fps, making it ideal for professional videography.
-
Dual Pixel CMOS AF II: The advanced autofocus system offers lightning-fast and precise focusing, ensuring sharp and clear shots every time.Gigabit Ethernet Connectivity: Connect the camera to a network via Gigabit Ethernet for fast data transfer and remote shooting capabilities.
Additional Details:
The Canon EOS R5 Body Only features a built-in electronic viewfinder with a high resolution of approximately 5.76 million dots, providing a vivid and detailed view of your subjects. It also comes with dual card slots (CFexpress Type B and SD UHS-II) for extended storage capacity.
With its weather-sealed construction, the is designed to withstand various environmental conditions, allowing you to shoot confidently in challenging settings. The camera's ergonomic design ensures comfortable handling during long shooting sessions.
Canon R5 Specs
Imaging
| Lens Mount |
Canon RF |
| Sensor Resolution |
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464) |
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS |
| Image Stabilization |
Sensor-Shift, 5-Axis |
| Built-In ND Filter |
None |
| Capture Type |
Stills & Video |
Exposure Control
| Shutter Type |
Electronic Shutter, Mechanical Focal Plane Shutter |
| Shutter Speed |
Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 0.5 Seconds |
| ISO Sensitivity |
100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
100 to 51,200 in Auto Mode
Video
100 to 25,600 (Extended: 51,200) |
| Metering Method |
Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range |
-3 to 20 EV |
| White Balance |
2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting |
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
| Interval Recording |
Yes |
| Self-Timer |
2/10-Second Delay |
Still Image Capture
| Image Sizes |
3:2 JPEG / Raw
8192 x 5464
5808 x 3872
4176 x 2784
2976 x 1984
2400 x 1600 |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
| Image File Format |
JPEG, Raw |
| Bit Depth |
14-Bit |
Video Capture
| Internal Recording Modes |
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
Raw 12-Bit
8192 x 4320 at 23.98/24.00/25/29.97 fps [2600 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps |
| Sensor Crop Modes |
Super35 / APS-C
4K |
| Gamma Curve |
Canon Log, Canon Log 3 |
| Recording Limit |
Up to 30 Minutes |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
Yes |
| Built-In Microphone Type |
Stereo |
| Audio Recording |
AAC Audio
LPCM Audio |
Interface
| Media/Memory Card Slot |
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) |
| Video I/O |
1 x Micro-HDMI Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |
1 x USB-C (5VDC at 1.5 A) Input |
| Other I/O |
1 x USB-C (USB 3.2 / 3.1 Gen 2) Input/Output (Shared with Power Input)
1 x Canon N3 Control Input |
| Wireless |
5 GHz Wi-Fi 5 (802.11ac), Bluetooth Control |
| Mobile App Compatible |
Yes
|
| Global Positioning (GPS, GLONASS, etc.) |
None |
Monitor
| Size |
3.2" |
| Resolution |
2,100,000 Dot |
| Display Type |
Free-Angle Tilting Touchscreen LCD |
| Secondary Display |
Top: Status Display |
Viewfinder
| Type |
Built-In Electronic (OLED) |
| Size |
0.5" |
| Resolution |
5,760,000 Dot |
| Eye Point |
23 mm |
| Coverage |
100% |
| Magnification |
Approx. 0.76x |
| Diopter Adjustment |
-4 to +2 |
Focus
| Focus Type |
Auto and Manual Focus |
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points |
Phase Detection: 1053 |
| Autofocus Sensitivity |
-6 to +20 EV |
Flash
| Built-In Flash |
No |
| Maximum Sync Speed |
1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System |
eTTL |
| External Flash Connection |
Hot Shoe, PC Terminal |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 85% |
General
| Battery Type |
1 x LP-E6NH Rechargeable Lithium-Ion |
| Tripod Mounting Thread |
1 x 1/4"-20 Female (Bottom) |
| Accessory Mount |
1 x Hot Shoe Mount |
| Material of Construction |
Magnesium Alloy |
| Dimensions (W x H x D) |
5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm |
| Weight |
1.62 lb / 738 g |
