Canon EOS C50 Full-Frame Cinema Camera (Canon RF)
Introduction

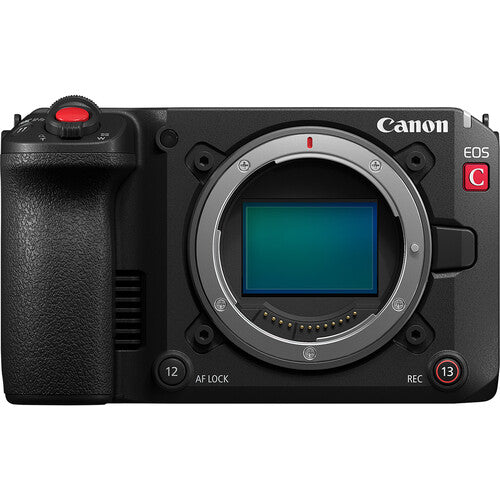

The Canon EOS C50 Full-Frame Cinema Camera (RF Mount) is a compact yet powerful tool designed for modern filmmakers. Featuring a 7K full-frame CMOS sensor and advanced image processing, it delivers outstanding cinematic quality in a portable body.
Design and Build

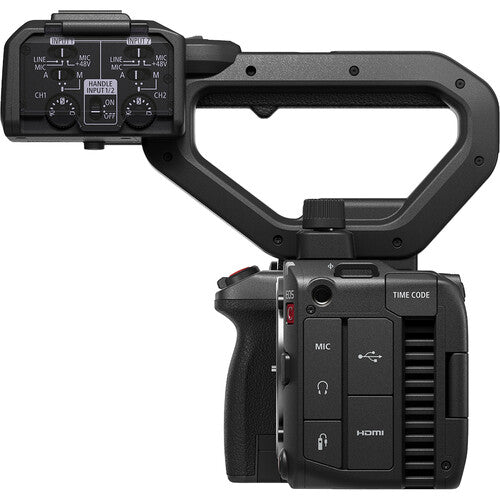

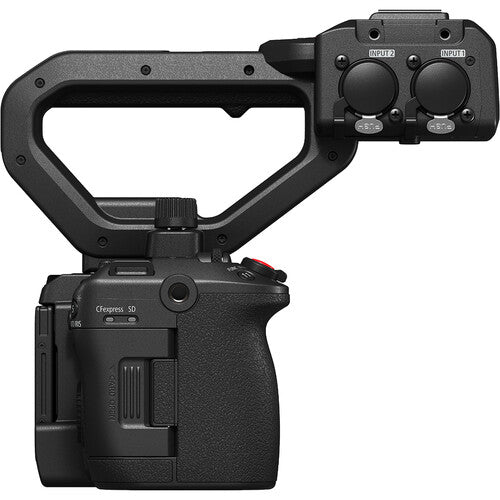

Engineered for versatility, the EOS C50 combines durability with ergonomic design. Its detachable top handle includes XLR inputs, offering professional audio recording options and flexibility for both studio and field production.
Image Quality
At the heart of the C50 is a 7K full-frame CMOS sensor paired with the DIGIC DV7 processor. This combination enables 7K RAW recording up to 60fps and oversampled 4K video, ensuring superior clarity, dynamic range, and color depth for cinematic storytelling.
Recording Capabilities
The camera supports multiple formats, including Cinema RAW Light, XF-AVC, and XF-HEVC. Open gate recording allows filmmakers to use the entire sensor, providing flexibility for framing and post-production adjustments.
Autofocus & Performance
With Dual Pixel CMOS AF II, the C50 offers fast, precise autofocus and advanced subject tracking. It can detect and follow people, animals, and faces across nearly the entire frame, ensuring reliable focus in dynamic shooting conditions.
Connectivity & Workflow

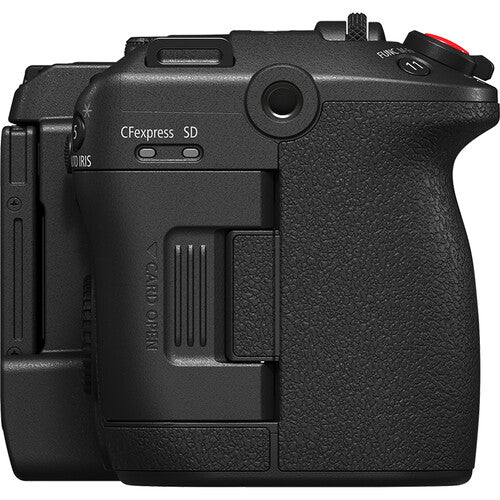

Professional connectivity options include HDMI output, USB-C, timecode, and dual card slots (CFexpress and SD). The camera supports simultaneous recording, streamlining workflows for faster editing and efficient content delivery.
Ease of Use
Despite its advanced capabilities, the EOS C50 is designed with intuitive menus and user-friendly controls. This makes it accessible to both experienced cinematographers and emerging filmmakers.
Conclusion
The Canon EOS C50 Full-Frame Cinema Camera (Canon RF) is a versatile and powerful filmmaking solution. With its 7K sensor, RF lens compatibility, and advanced recording features, it delivers the performance and flexibility needed to produce cinematic content at the highest level.
Canon C50 Specs
| Lens Mount |
Canon RF
|
| Lens Communication |
Yes: Cooke /i
|
| Image Sensor |
Full-Frame CMOS
|
| Effective Sensor Resolution |
34.2 Megapixel (7144 x 4790)
|
| Image Stabilization |
No
|
| Built-In ND Filter |
No
|
| Built-In CC Filter |
No
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/16000 to 30 Seconds
|
| Shutter Angle |
11.25 to 360°
|
| ISO/Gain Sensitivity |
Dual Base: 800 / 6400
Native: 100 to 25,600 (100 to 25,600 Extended)
Dual Base: 400 / 3200*
Native: 800 to 51,200 (800 to 102,400 Extended)
*Base ISO Is Dependent on Selected Color Space
|
| Signal-to-Noise Ratio |
Not Specified by Manufacturer
|
| Advertised Dynamic Range |
16 Stops
|
| Exposure Modes |
Auto, Manual
|
Focus
| Focus Mode |
Automatic, Continuous-Servo AF, Manual Focus, One-Shot AF
|
Video Capture
| Internal Recording |
Raw 12-Bit
6960 x 4640 at 24.00/25/29.97/23.98 fps
6960 x 3672 at 23.98/50/24.00/25/29.97/59.94 fps
5036 x 2656 at 23.98/50/24.00/25/29.97/59.94 fps*
2524 x 1332 at 23.98/50/24.00/25/29.97/59.94 fps*
XF-HEVC S 4:2:2/4:2:0 10-Bit
6912 x 4608 at 24.00/25/29.97/23.98 fps
4096 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
2048 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
H.264/MPEG-4/XF-AVC S 4:2:2 10-Bit
4096 x 2160 at 24.00/25/29.97/50/59.94/23.98 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
H.264/MPEG-4/XF-AVC S 4:2:0 8-Bit
4096 x 2160 at 24.00/25/29.97/50/59.94/23.98 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
2048 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
*Sensor Crops During Recording
XF-AVC 4:2:2 10-Bit
4096 x 2160 at 24.00/25/29.97/50/59.94/23.98 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
2048 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
|
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
Canon Log 2, Canon Log 3, Hyper Gamma
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
Raw, XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio
XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
XF-AVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio
XF-AVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
|
| IP Streaming |
RTP, RTSP, SRT, UDP
920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)
|
Interface
| Media/Memory Card Slot |
Slot 1: SD/SDHC/SDXC
Slot 2: CFexpress Type B (CFast 2.0) [VPG-400 or Faster Recommended]
|
| Internal Storage |
No
|
| Video I/O |
1x HDMI Output
|
| Audio I/O |
2x XLR 3-Pin Mic/Line Input on Included Handle (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body (Plug-in Power)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
| Power I/O |
1x USB-C
|
| Other I/O |
1x 2.5 mm Sub-Mini (Remote) Control
1x USB-C (Ethernet, UVC 1.5) (Shared with Power Input)
1x DIN 1.0/2.3 (Timecode) Input/Output
1x Proprietary
|
| Wireless |
Wi-Fi / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Canon App
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |

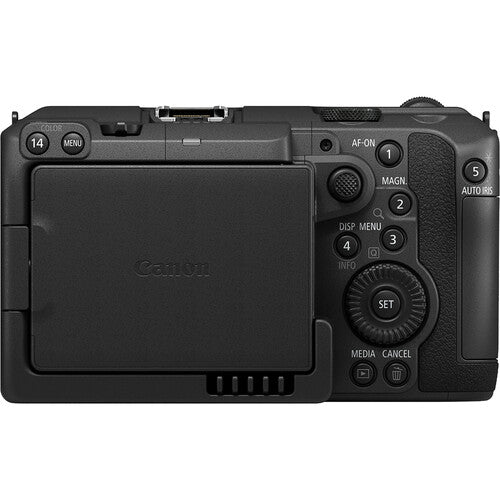

Articulating 3" Touchscreen LCD
|
Power
| Battery |
Canon LP-E6, Canon LP-E6NH
|
Environmental
| Operating Conditions |
23 to 113°F / -5 to 45°C at 60 to 85% Humidity
|
General
| Shoe Mount |
1x Intelligent Hot Shoe
|
| Accessory Mounting Thread |
1x 1/4"-20
|
| Dimensions (W x H x D) |
5.6 x 3.5 x 3.7" / 143 x 88 x 95 mm
8.7 x 9.4 x 7.3" / 222 x 239 x 186 mm (With Handle, Mic Holder)
|
| Weight |
23.5 oz / 665 g (Body Only)
|
